    2019 CXR 9.2

    £1,919.00 RRP £2,400.00
    • Boardman CXR 9.2 Cyclocross Bike in Black & Silver
    Overview

    The CXR 9.2 combines our new high modulus C10 carbon frame and fork with a SRAM Force CX1 groupset to make a ready to race bike that’s hard to beat. We’ve refined the frame and fork with feedback from our sponsored athletes, increasing tyre clearances and designing a brand new fork to improve handling in tight corners.

    With tubeless ready CXR Elite Five wheels and 33mm Clement MXP tyres, ditching inner tubes is as easy as adding sealant, meaning low pressures for high grip in the sloppy mud are possible without the risk of pinch flats. A 11 speed SRAM Force CX1 groupset gives a great spread of gears without the complexity of a front derailleur, and with powerful hydraulic disc brakes, you can conquer any corner or descent with confidence and control.

    • Boardman CXR 9.2 “The CXR 9.2 has lots to offer the club racer, with great performance that won’t break the bank” Read Article
    Technical Specification
    • Frameset
      • CXR - C10 Carbon
      • Boardman CXR C10 Carbon Tapered Steerer, 12mm Thru-Axle
      • FSA, No.42
      • FSA BB-PF30
    • Groupset
      • SRAM Force CX1 - BB30
      • 40T
      • SRAM Force CX1 Long Cage
      • SRAM Force
      • SRAM Force Hydraulic
      • SRAM Force Hydraulic
      • SRAM Force 11-36
      • SRAM PC-1130
    • Components
      • Fizik Tundra M7
      • Boardman Elite Carbon - 31.6mm
      • Boardman Elite Alloy - 5° rise
      • Boardman Elite Alloy
      • Boardman Soft-grip
      • Pedals not included
    • Weight
      • Approx 8.4kg - based on a Medium
    • Wheelset
      • Boardman CXR Elite Five
      • 12x100mm front, 12x142mm rear
      • CXR Elite Five, 28h - Tubeless Ready - 21mm internal width
      • 33mm Clement MXP Tubeless
    • i Off Road Optimised

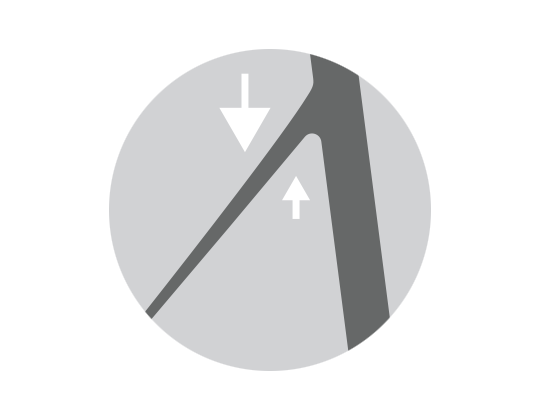

      Wishbone seat stays offer shock absorption for greater comfort and control, combined with clearance for 37mm tyres and mud

      The CXR range has been designed to be ridden hard and fast across almost any terrain. We have combined slim, wishbone seat stays and oversized, box section chain stays to give a perfect blend of comfort, control and efficiency.

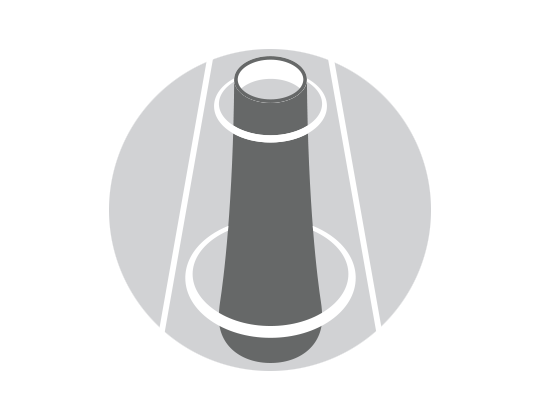

    • i Tapered C10 Carbon Fork

      A tapered, full carbon fork with a 1 1/2 inch lower headset bearing increases stiffness and steering precision

      The interface between the fork and the headtube is responsible for transmitting all of your steering inputs into your wheels, so is a key component in giving you confidence in your bike's handling.

      We use an oversized 1-1/2" lower headset bearing to allow a smoother flow of fibres from the fork crown into the steerer tube, increasing both stiffness and durability of the fork. This translates into better steering feel and control, helping you navigate through deep rutted mud or dodge potholes on your way into work.

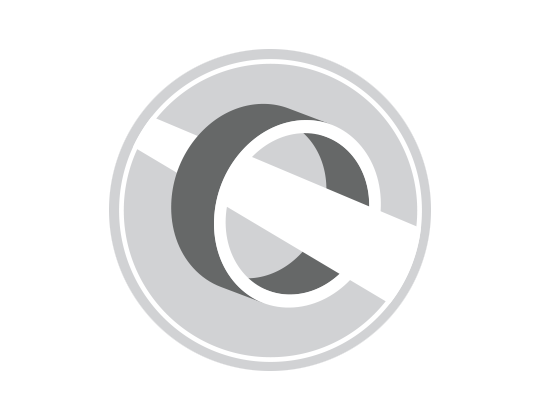

    • i Thru Axle & Disc Brakes

      Flat-mount Hydraulic disc brakes give consistent, powerful and controlled braking in all conditions, combined with 12mm front and 12mm rear thru axles for optimal strength and steering precision under hard braking or cornering

      When riding off road, you need power and control from your brakes. The hydraulic disc brakes throughout the CXR range offer huge amounts of braking force, which you can control with just a single finger, meaning you can adjust how much braking power you are using in a fraction of a second. This lets you fully exploit the grip available from your tyres to bring you to a stop in as quick a time as possible.

      When this is combined with thru axles, which securely lock your wheels into the dropouts, the result is outstanding braking and steering, perfect for slaloming through the trees or sliding through the mud.

    • i Tubeless Ready

      The Boardman CXR Elite wheelset and Clement MXP Tyres are tubeless ready. With tubeless valves supplied with the bike, all you need to do is add sealant (Bikes only)

      The Boardman CXR Elite wheels are tubeless ready and come fitted with rim tape out of the box. With the tubeless ready Clement tyres already fitted, all you need to do is add sealant and inflate. Removing tubes from your tyres eliminates the risk of pinch flats, allowing you to run lower pressures for improved grip, and the sealant should stop any punctures before your tyre deflates.

    Sizes & Fit
    Standard Range Size
    Recommended Height
    Recommended Inseam(inside leg to floor)
    Conventional Seat Tube
    TT Top Tube
    ST Seat Tube
    HT Head Tube
    HA Head Angle
    SA Seat Angle
    CS Chain Stay
    FO Fork Offset (Rake)
    BB Bottom Bracket Drop
    Wheelbase
    S Stack
    R Reach
    Stack to Reach Ratio
    Handlebar Width
    Stem Length
    Crank Length
    View Geometry
    • XS
      167 - 172cm
      76 - 79cm
      52cm
      520
      490
      100
      70°
      75°
      425
      50
      67
      1013
      520
      381
      1.36
      400
      90
      170
    • SM
      172 - 177cm
      79 - 81cm
      54cm
      535
      515
      120
      71.5°
      74.5°
      425
      50
      67
      1011
      544
      384
      1.42
      400
      90
      170
    • MD
      177 - 183cm
      81 - 84cm
      56cm
      550
      540
      140
      72°
      73.5°
      425
      50
      65
      1012
      563
      383
      1.47
      420
      100
      172.5
    • LG
      183 - 189cm
      84cm - 89cm
      58cm
      565
      565
      160
      72.5°
      73°
      425
      50
      65
      1017
      584
      387
      1.51
      440
      110
      175
    • XL
      189 - 200cm
      89 - 94cm
      60cm
      580
      590
      180
      73°
      73°
      425
      50
      65
      1027
      605
      395
      1.53
      440
      120
      175
